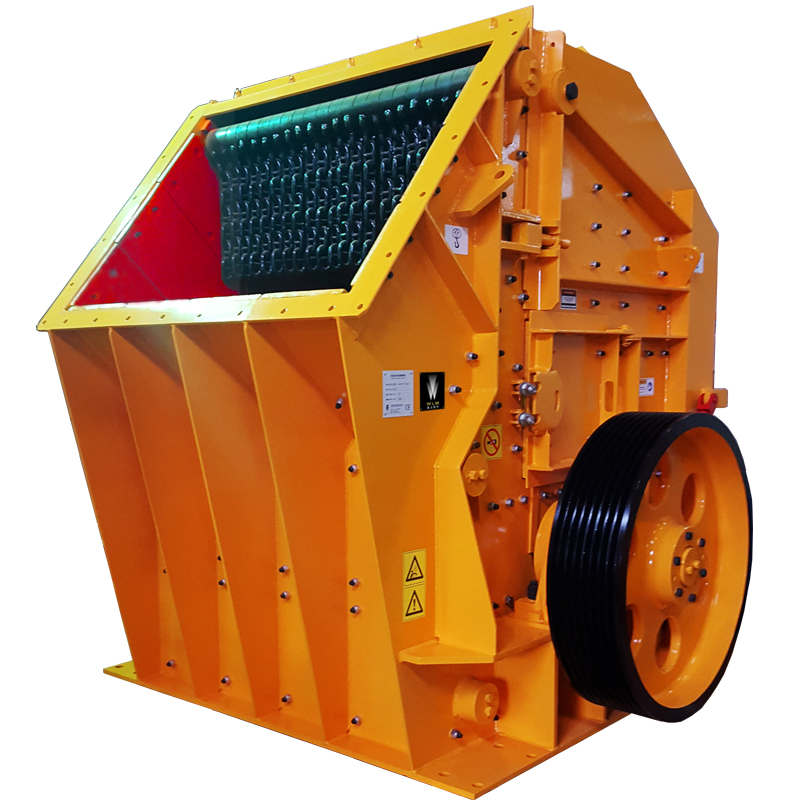

PFC Impact Crusher
E-mail: info@shwlm.com
Video
  • Features
  • Technique Data
  • Service
PFC Hydraulic impact crusher with the advanced world standard is latest generation product, absorbing the latest technology around the world. Because the rotor is the key part of the impact crusher and also the most critical part of inspection and acceptance, our company develop and produce the strong and heavy type rotor in order to get the higher rotary inertia. The use of high abrasion-resistant material and the best design of the crushing chamber make the performance of the crusher more remarkable.

  • Reliability
Our impact crushers are designed to refine coarse, friable material.
PFC Impact crusher have a full range of advanced structure that combined with wear resistance, a powerful rotor and special grinding cavity. With their low maintenance and easy operation. Our impact crusher offers excellent performance and high quality yield.


  • Ease of operation and maintenance
To make maintenance easy in various types of impact crusher , the blow bars can be replaced either vertically or horizontally. The spare parts don't wear at the same rate on one machine,so workers can interchangeable the blow bars

  • Quality
To ensure the high quality of the performance , PFC impact crushers are equipped with a single over sized rotor while using the same size blow bars in both the primary and secondary crushing.
Model Feed Opening(mm) Rotor diameter
(mm)
Rotor width
(mm)
Power
(kW)
Capacity(t/h)in diffrernt discharge size(mm) Weight (t)
76 63 51 38 25 19
PFC1010 930×800 1020 914 55-75 135 120 110 94 80 60 10.3
PFC1012 1160×800 1020 1143 90-110 170 150 137 120 100 75 11.5
PFC1016 1540×800 1020 1524 110-132 215 186 160 145 116 95 13.35
PFC1408 1065×778 1330 762 55-75 173 152 140 121 102 76 11.4
PFC1410 1065×930 1330 914 90-110 209 184 169 145 124 92 13.9
PFC1412 1160×1065 1330 1143 132-160 261 230 211 184 155 116 16
PFC1416 1540×1065 1330 1524 185-220 422 382 344 303 254 193 19.5
PFC1420 1844×1065 1330 1848 185-220 548 496 448 394 330 250 22
  • Agency and agent all ovr the world
    White Lai have many office in main market , and services to the customers face-to-face.
  • Wear parts supply whole year
    White Lai with most professional wear parts supply system,to meet the market demand for services effectively.
  • The top services to you
    White Lai's after-service number is 0086-21-68768882, 24 hours technical support by e-mail, by phone.
  • The first-class customer service
    If needed,experienced technicians guidance is available anytime.
  • Technical support whole day
    White Lai has service team , guidence with maintenance , spare parts , technical service work ,ect.
