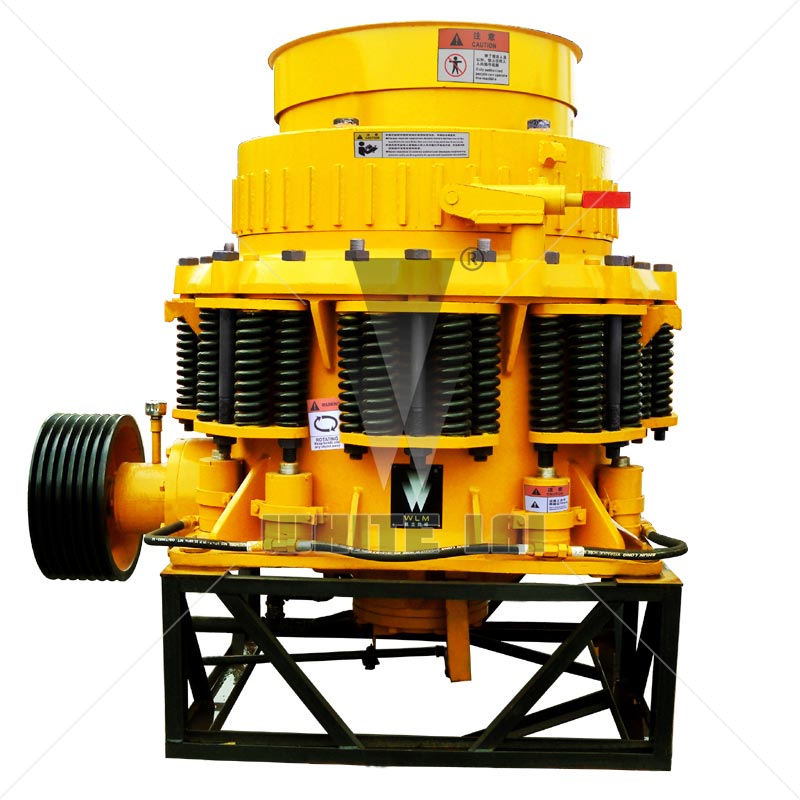

WL Cone Crusher
Video
  • Features
  • Technique Data
  • Service
  • High strength and firm structure
The main body of the cone crusher a box shaped cast steel structure, whose high load areas are reinforced by hard steel.

  • Finite element design
WL series high efficiency cone crusher is designed with the help of modern CAD technology. All series models have gone through the FEM technology analysis, which ensures all stress levels inside within appropriate range and guarantees the high strength structure and stable performance of WL series high efficiency cone crusher.

  • High reliability and practicability originates from excellent design
High efficiency compound cone crusher adopts tapered roller bearing to replace the old style horizontal shaft copper sleeve at both ends of the horizontal drive shaft and thus largely improves its rotation speed. Dust proof ring is assembled between the mantle cone and the seat liner. The maze O-ring is full of lubrication oil. The dust proof ring is supported by the spring in the seat liner so as to prevent dust from entering. The machine adopts electric automatic lubrication system that connects the main motor. If the pressure is insufficient or the temperature is too high, the main motor stops immediately to prevent the main engine from damage. The machine is installed with hydraulic pressure adjustment device so as to quickly adjust the discharge mouth size and clear the crushing chamber and therefore reduce the time of machine hault.

  • High capacity,low cost and easy
Our machine's fine crushing chamber shape increases the effective crushing surface. The machine has the capacity to process larger feed size, increases 1/3 production capacity comparing with other cone crushers and can produce fine particles and cubic products. The mantle core and the crushing chambre are processed by digital control CNC machine, which makes the replacement of wearing plates quick and easy, eliminates the need to fill epoxide resin and improves the operational efficiency. Traditional cone crusher with the ancient crushing chamber structure, has limited crushing surfaces, low production and produces more elongated and flaky particles content. Epoxide resin needs to be filled between the mantle cone the crushing surface, which makes the replacement difficult, increases the failure rate and machine halt time and causes unstable performance of the machine.

  • Less downtime
Using the Hydraulic Pressure Chamber Clearing mean the WL Series cone crushers can pass tramp iron that would stall many competitors’ crushers. Using the Hydraulic Pressure Adjustment Device setting adjustment with the adjustment under load capability makes it easy to balance the crushing circuit and optimize crusher productivity.


Applications:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

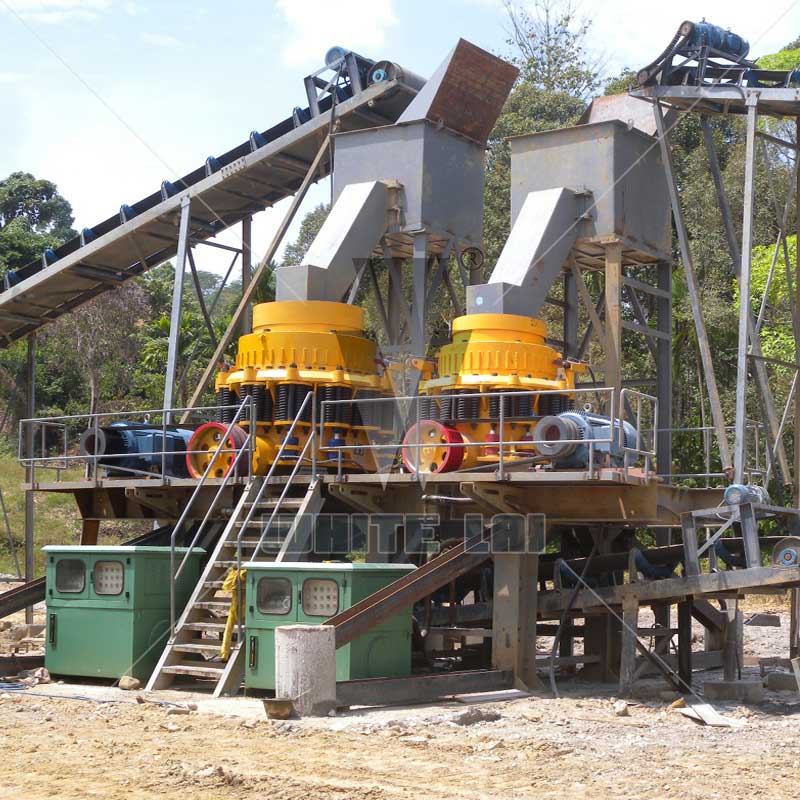

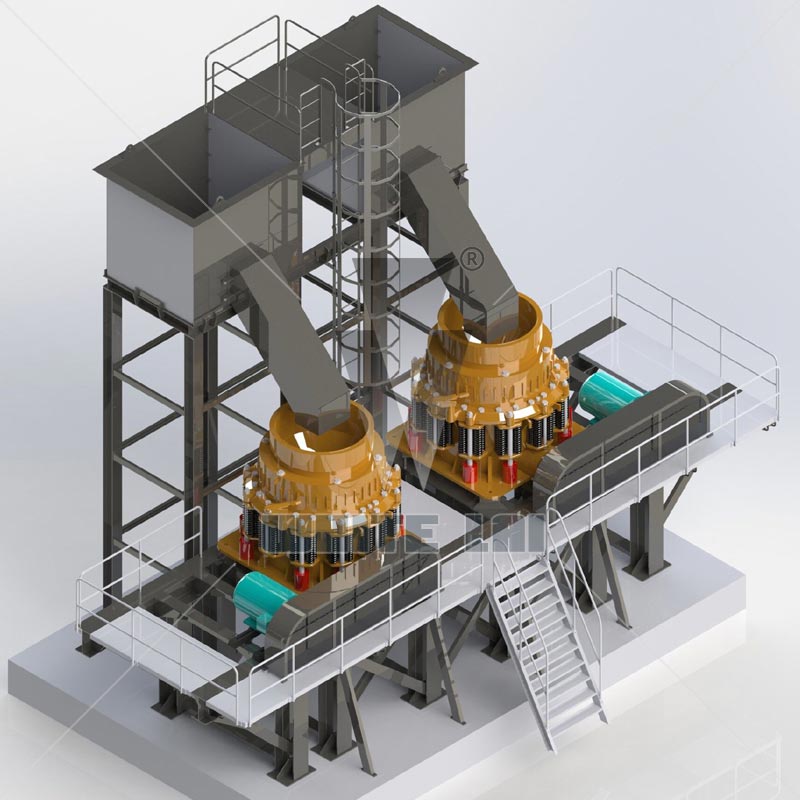

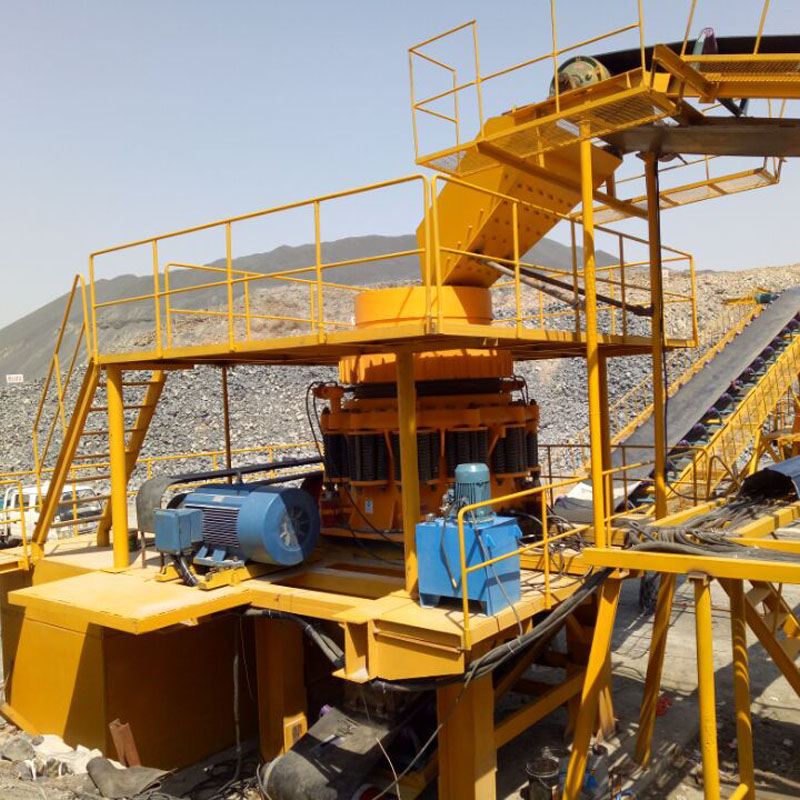

WHITE LAI cone crushers are widely used in mines and quarries around the world and have earned a reputation for being tough and reliable. Two main types of cone crushers are available: the Standard type for coarse crushing. the short head type for fine crushing. These two crusher types are designed for secondary or tertiary crushing of highly abrasive materials in ether fixed or mobile plants.

Model Cavity Cone Diameter
(mm)
Max feed Size
(mm)
Min Discharge Size
(mm)
Speed
(RPM)
Power
(kW)
Weight
(t)
Capacity(t/h)in diffrernt discharge size(mm)
6 10 13 16 19 22 25 38 51 64
WLC600 Coarse 600 95 10 630 37-55 5.3   20 25 30 35 45 50 76
WLF600 Fine 600 72 6 630 37-55 5.3 18 20 25 30 35 40 45 60
WLC1000 Coarse 1016 160 13 630 90-110 10.8     80 100 135 150 175 235
WLM1000 Medium 1016 115 10 630 90-110 10.8   65 75 90 120 135 150
WLF1000 Fine 1016 80 8 630 90-110 10.8 52 62 72 78 115
WLC1160 Coarse 1143 180 13 630 110-132 16   115 135 150 180 200 260
WLM1160 Medium 1143 130 10 630 110-132 16   100 110 120 135 165 175
WLF1160 Fine 1143 90 10 630 110-132 16   80 105 110 140
WLC1300 Coarse 1296 200 16 610 132-160 23       150 180 200 230 310 390
WLM1300 Medium 1296 150 13 610 132-160 23     115 140 160 190 210
WLF1300 Fine 1296 102 10 610 132-160 23   90 115 145 160
WLC1380 Coarse 1372 215 19 610 185-220 27         200 220 260 350 440
WLM1380 Medium 1372 160 16 610 185-220 27       155 180 200 220
WLF1380 Fine 1372 115 13 610 185-220 27     150 190 210 230
WLC1500 Coarse 1524 235 22 560 185-220 37.8           265 310 420 525 580
WLM1500 Medium 1524 175 19 560 185-220 37.8         215 240 265 320
WLF1500 Fine 1524 130 13 560 185-220 37.8     180 210 235 255 275
WLC1680 Coarse 1676 267 22 560 250-300 44.3           330 390 525 655 725
WLM1680 Medium 1676 203 16 560 250-300 44.3       210 250 280 300
WLF1680 Fine 1676 140 13 560 250-300 44.3     180 220 260 335
  • Agency and agent all ovr the world
    White Lai have many office in main market , and services to the customers face-to-face.
  • Wear parts supply whole year
    White Lai with most professional wear parts supply system,to meet the market demand for services effectively.
  • The top services to you
    White Lai's after-service number is 0086-21-68768882, 24 hours technical support by e-mail, by phone.
  • The first-class customer service
    If needed,experienced technicians guidance is available anytime.
  • Technical support whole day
    White Lai has service team , guidence with maintenance , spare parts , technical service work ,ect.
